Scripted field Synchronization

To synchronize the scripted fields perform the following steps:
  1. Select a JIRA-supported template and searcher.
  2. Create the appropriate scripted field according to requirement.


    The table below lists the Scripted Fields supported in the current version of AccuSync.

    AccuWork Field Type JIRA Field Type Synchronization Type
    ScriptedFields Text ScriptedField1 Scripted field(Text Field multilne)) One Way (JIRA Master)
    ScriptedFields Text ScriptedField2 Scripted field(Date Time Picker)) One Way (JIRA Master)
    ScriptedFields Text ScriptedField3 Scripted field(Number multilne)) One Way (JIRA Master)
    ScriptedFields Text ScriptedField4 Scripted field(Single User Picker)) One Way (JIRA Master)
    ScriptedFields Text ScriptedField5 Scripted field(Multi User Picker)) One Way (JIRA Master)

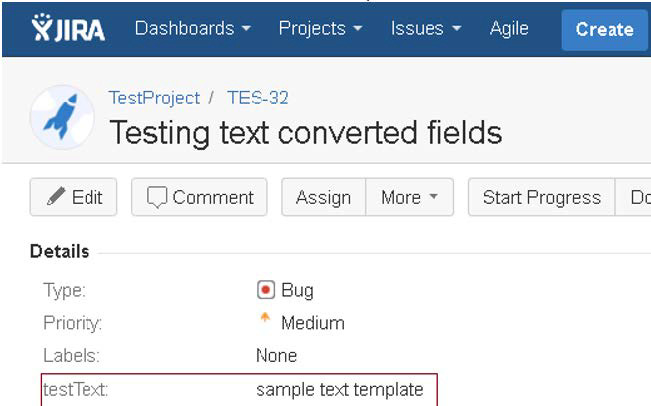

  3. Navigate to Create button on the JIRA window to check if the scripted field is displayed. For example, testText sample texttemplate is displayed under the section Details.


  4. Navigate to AccuSync Management Console.
  5. Click the Edit Configuration button GUID-5197C9CE-B9A0-48D6-A7D5-9526C29D0091-low.png, the Configuration: Default JIRA Configuration window is displayed.

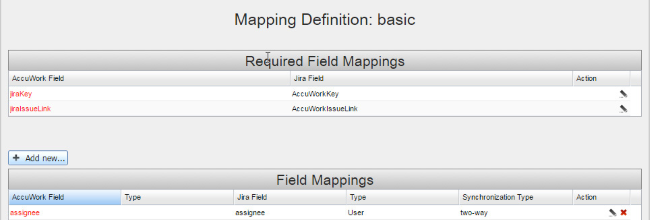

  6. Navigate to Mapping Definitions section, click GUID-5197C9CE-B9A0-48D6-A7D5-9526C29D0091-low.png in the appropriate row. The Mapping Definition: basic widow is displayed.

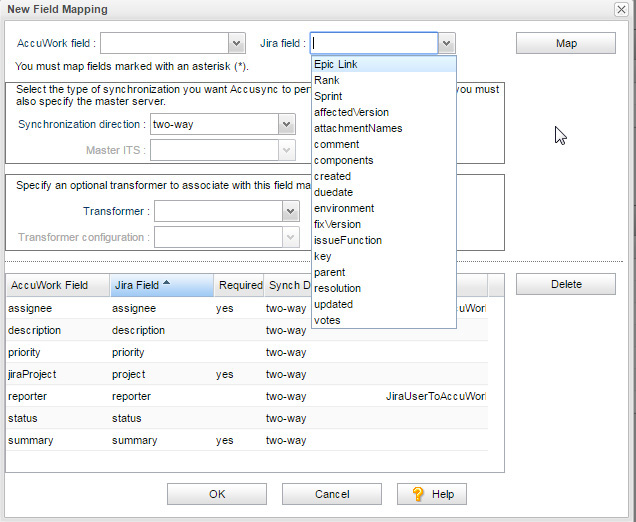

  7. Click + Add new... button. The New Field Mapping dialog box is displayed.


  8. Enter the following values:
    AccuWork Field
    Select existing AccuWork field from the list or enter a new field name, which is to be mapped to the JIRA field.
    JIRA Field
    Select the JIRA field from the list to which the AccuWork field is to be mapped.
    Synchronization Direction
    Select one way or synchronization from the list.
    Master ITS
    Select the appropriate Issue Tracking System, for example: JIRA.
    Transformer
    Leave this field blank.
    Transformer Configuration
    Leave this field blank.
  9. Click the Map button. The mapped fields are displayed below, under the headings AccuWork Field, JIRA Field, Required Synchronization and Transformer.
  10. To delete a row, select a row and click the Delete button.
  11. To confirm the mapping, click OK. The mapped fields are displayed in the Field Mappings section of Mapping Definition: basic window.
  12. Navigate to AccuSync Management Console, click the play button GUID-269AF13D-B4C4-4766-B5B8-5189182AD5DB-low.png to run the synchronization.
Parent topic: Synchronization of Scripted and Custom fields
